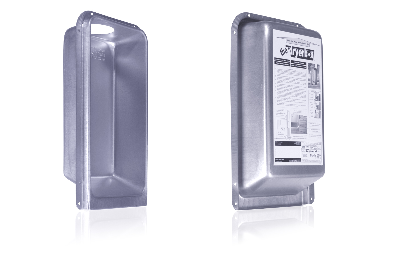

Dryerbox Model 350
All models are UL Classified for a 1-hour F-Rating. Deep drawn manufacturing process and made in the USA. Extension rim protrudes from nailing flange 7/8″. Total of eight 1/4″ mounting holes (4 on each side). Sides are tapered to allow for nesting of multiple boxes. Surface is clean of any oil residue and will adhere paint. Instruction sheet attached to rear panel. All models incorporate a Gas Port knock-out
Item Details
- 22 gauge aluminized steel weighing 4.03 pounds each
- Top port measures 4 7/8" x 3 1/8" oval shape
- Distance from nailing flange to rear of box is 3 1/2"
- Overall measurements: 21" h x 12 1/2" w x 4 3/8" deep
- Inside measures 9 1/2" wide x 18 1/4" tall
- Six units per carton, 36 cartons per pallet, ships as a class 70
- See PDF Downloads in Services & Capabilities section on Main Menu for more information.
- Product Number
- Size
- PKG/EA
- CTN/Pallet
-
- Product Number: DB-350
- Size: 350
- PKG/EA: 6 ea / pkg
- CTN/Pallet: 36 ctn / pallet
